Demonstrating the Fluid Space Drive in orbit





We (with others) will launch a microsatellite in 16 to 27 months from today (20/6/2022) to demonstrate our method of space propulsion in orbit.

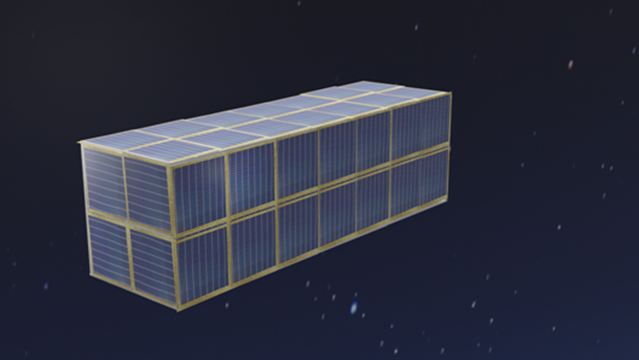

It will be a standard cubesat configuration composed of 24 stacked units.









A plaque with the names of those that contribute to the project will be included on board.





The mission



The mission is very simple, demonstrate a working and practical Space Drive (uses no fuel) in orbit, for that we must:



1- Have our cubesat launched into orbit as secondary payload on a launch vehicle via NASA's CubeSat Launch Initiative or others.

2- We must stabilize and orient the cubesat before activation of the PAYLOAD, see CONTROL (ADCS)

3-We activate the payload (Fluid Space Drive) and the position change caused by the constant acceleration will be transmitted via the COMMUNICATIONS MODULE.







Elements of our cubsat



Structure



Power



Description: Description: Description: https://nanoavionics.b-cdn.net/wp-content/uploads/2020/07/EPS-1-1-1024x950-1-rez.jpg

Communication



Description: Description: Description: ISIS High Data Rate S-Band Transmitter

Control



Description: Description: Description: https://nanoavionics.b-cdn.net/wp-content/uploads/2018/07/SatBus-4RW0-1-new.jpg

Computing



Description: Description: Description: Raspberry Pi Zero, a minimal single-board computer - From https://en.wikipedia.org/wiki/File:Raspberry-Pi-Zero-FL.jpg

Payload





Structure



Fig 1

Our satellite must conform to cubesat specifications, must be composed of modular 10cm X 10cm X 10cm segments, with a maximum of 24 cubes.

We use a 20cm X 20cm X 60cm configuration.

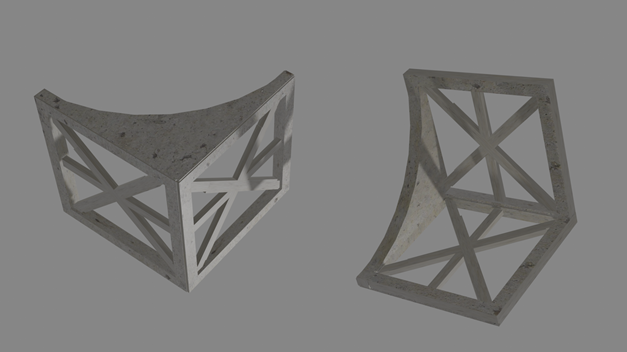

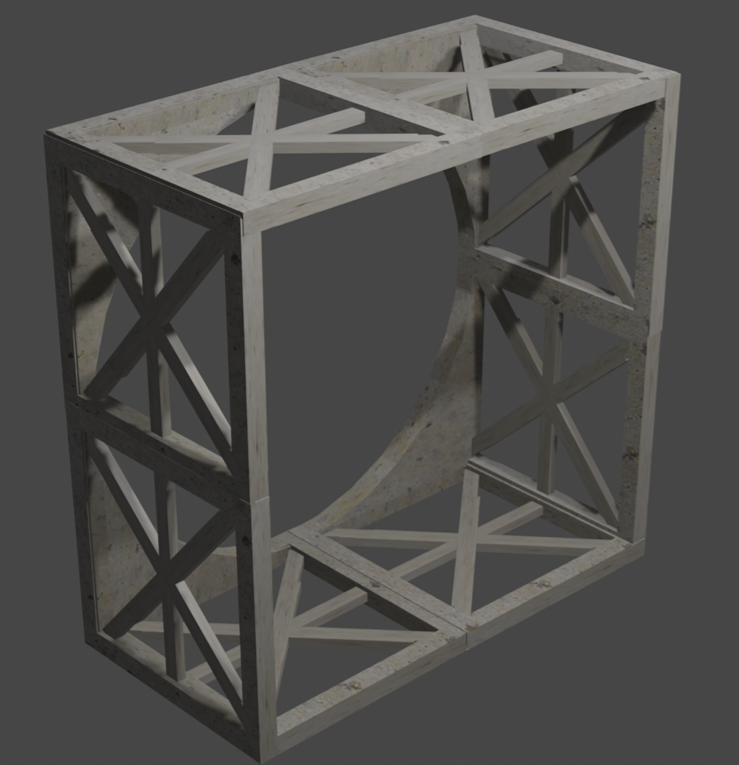

Our structure is composed of 24 3d printed elements  (fig 1) that combine to create the “ribs” of the cuebsat (fig2)



Fig 2

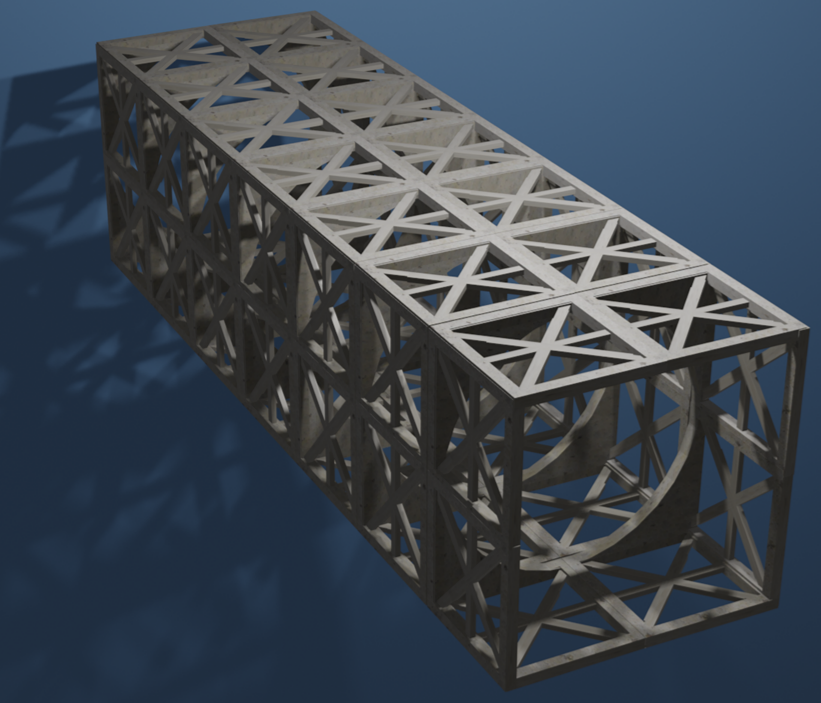

Then the structure of the cubesat (fig3)

Fig 3

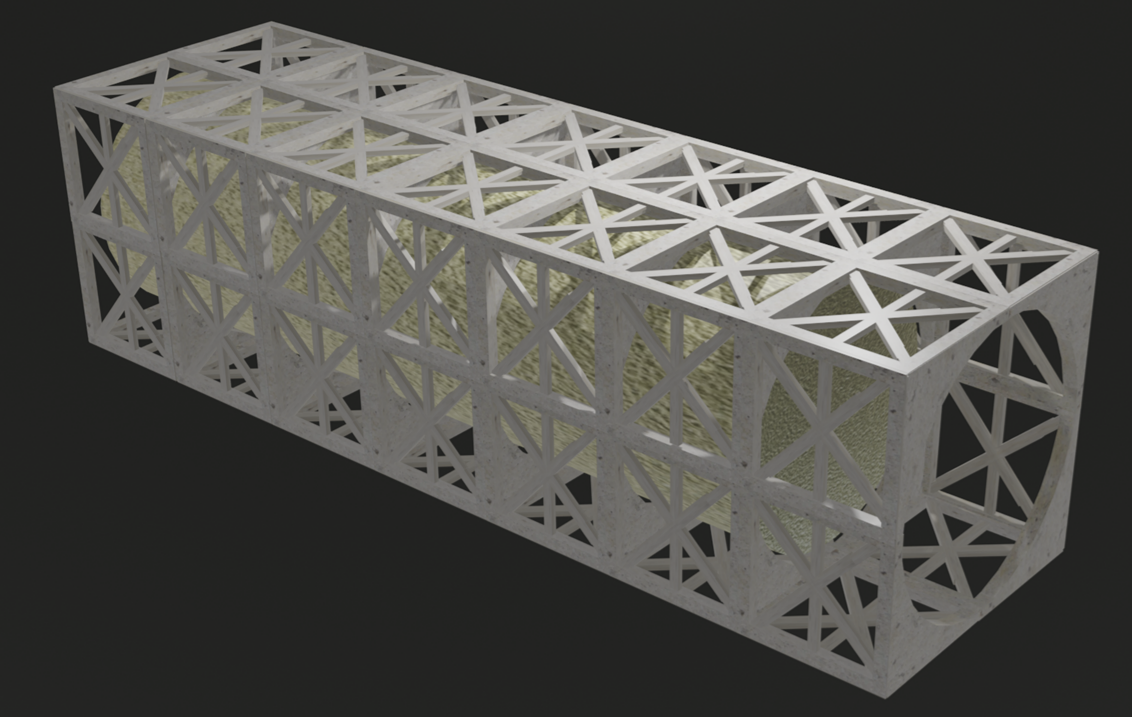

Fig 4

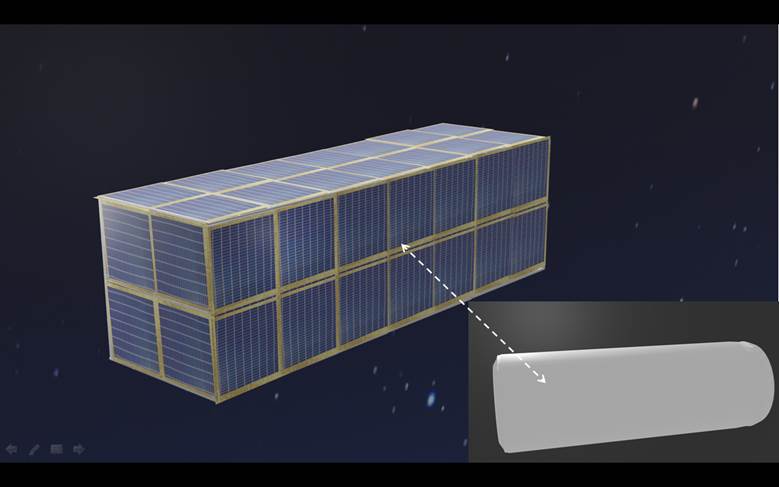

The payload will fit snugly in the first 50 cm of the satellite leaving 4 units for control and power



Power

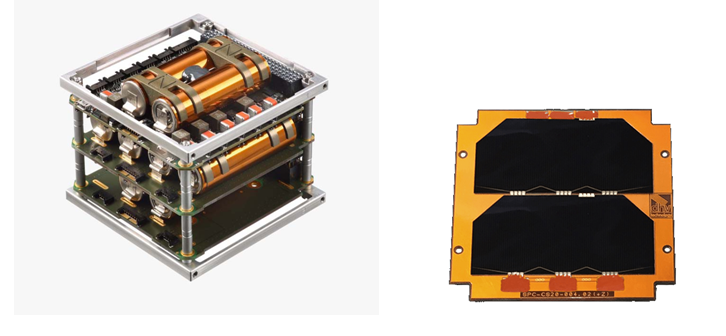

Power will be provided by batteries and solar panels



Communication

The only information  our cubesat needs to transmit is its position therefore a simple transmitter will be sufficient, besides indicating the cubesat’s position it may occasionally transmit additional data such as the charge of the batteries



Control

When the cubesat is expelled into orbit by its orbital deployer it will most likely very unstable spinning on its axis’s, to correct this behavior we will use “off the shelf” reaction wheels and altitude control



Computing

A microcontroller will be sufficient to control the spacecraft, a simple program will activate and control the systems



Outline of the microcontroller program



At the appointed time a reading from an external pressure sensor will be taken to confirm that the cubesat is in orbit.

If in orbit computer controlled reaction wheels will stabilize and orient the cubesat.

When stabilized the payload (fluid space drive) will be activated and status will be transmitted

The Fluid space drive will function continuously unless:

It is detected that power is depleted, in that case the cubesat will shutdown the payload until the batteries regain a pre determined level

If it is detected the cubesat is losing orientation the computer controlled reaction wheels will engage for as long as necessary



This is naturally a oversimplification, modification will be made according to testing





Payload

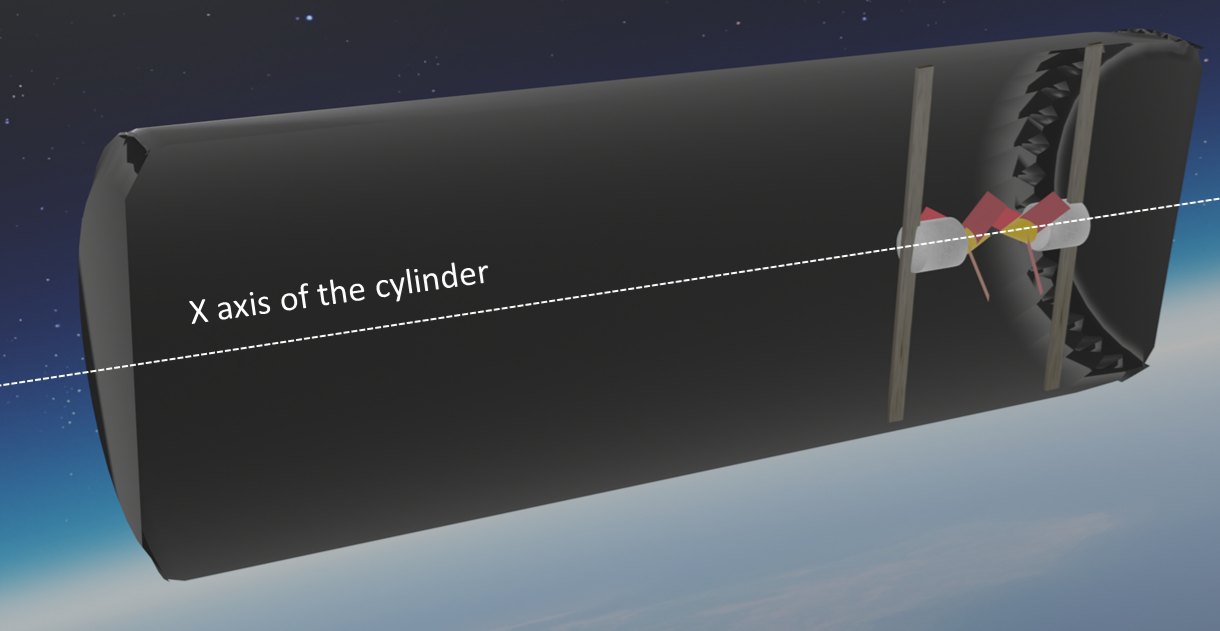

The payload consist of the Fluid Space Drive to be demonstrated, it is composed of a cylinder pressurized container that fits snugly inside the cubsast’s structure

Inside the structure there are two motor driven propellers paced on the X axis of the cylinder by a shaft

The propeller counterrotet

Some version of the drive use only one propeller

See why it works



You can make a very simple working demonstration model of the fluid space drive using a 6 litre water bottle see here

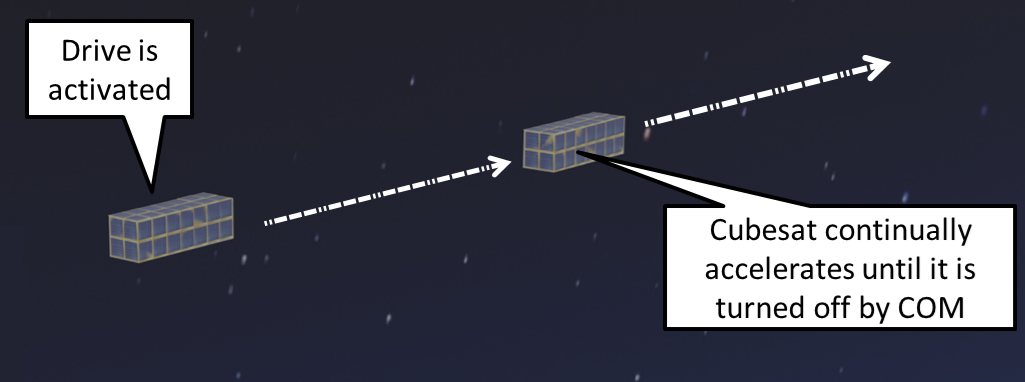

When activated, the cubesat constantly accelerates without using any fuel or propellant until it is turned off via the communication system (COM) demonstrating its ability to provide spacecraft with unlimited delta-v (∆v)
